Warning: Use of undefined constant title - assumed 'title' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 152 电脑diy,详细教您如何组装电脑
- 分类:重装系统 发布时间: Warning: Use of undefined constant newstime - assumed 'newstime' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 156 2018年04月04日 09:09:00
很多人都喜欢自己DIY,选择自己所需要的硬件来组装电脑,自己组装电脑可以有效避免硬件性能不协调的情况,经常有网友表示,自己想组装电脑但又无从下手,也是,万事开头难想,下面,小编就来跟大家介绍组装电脑的操作步骤了。
对于游戏迷来说,普通电脑配置并不能满足他们的需求,于是自己动手组装台式电脑一直是很多电脑玩家首选的购机方式,因此,他们都会自己购买合适的配置进行组装,那么,怎么组装台式电脑呢?下面,小编给大家准备了组装电脑的图文解说了。
如何组装电脑
装台电脑需要哪些硬件;知道怎么给这些硬件插上供电接口;剩下的就是拧拧螺丝的事情了。
装机电脑图解-1

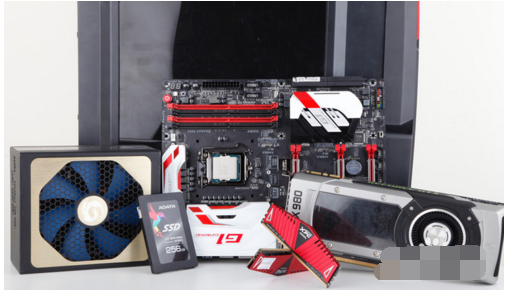

一般的台式电脑主要是由CPU、主板、内存、硬盘、显卡、电源、机箱这七个部分组成。其中,电源负责供电,主板是CPU、内存、硬盘、显卡的连接枢纽。集齐这七个硬件,就可以召唤出神龙,组装一台完整的电脑。
装机电脑图解-2
在CPU右下角有三角形的防呆标记,安装时将CPU的三角形和主板的三角形对应就好。由于(Intel)主板针脚或(AMD)CPU针脚容易弯曲、折断,所以安装过程要小心。
组装电脑电脑图解-3
在装CPU散热时,必须涂抹一层散热硅脂,以便CPU更好的散热。
电脑电脑图解-4

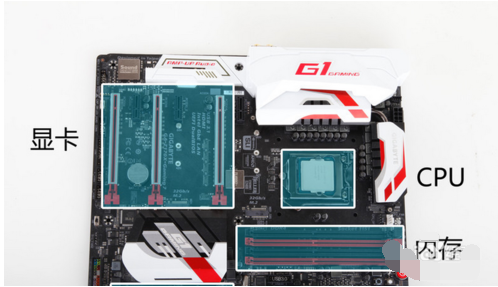

主板有机的连接电脑的各硬件,如上图所示,就是CPU、内存、硬盘、显卡的
接口位置。
装机电脑图解-5

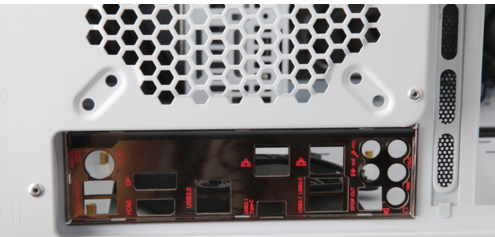

安装主板之前需要在输入输出接口的地方安装I/O防静电挡板。
电脑电脑图解-6

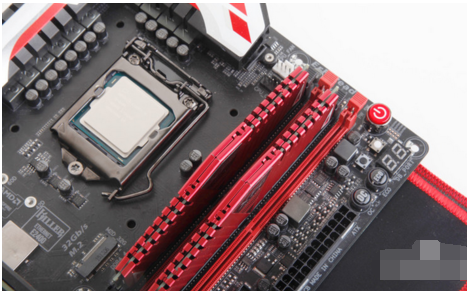

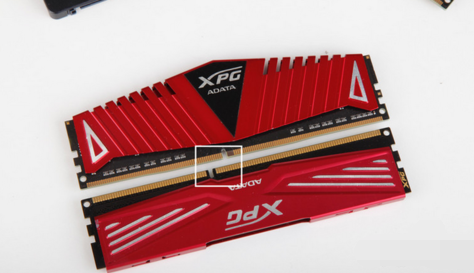

因为内存有明显的防呆缺口,所以内存直接插到内存槽里就好。
电脑电脑图解-7
需要注意的是,如果有两条内存的话,最好插在1、3位或2、4位,这样才能发挥双通道的优势。
diy电脑图解-8

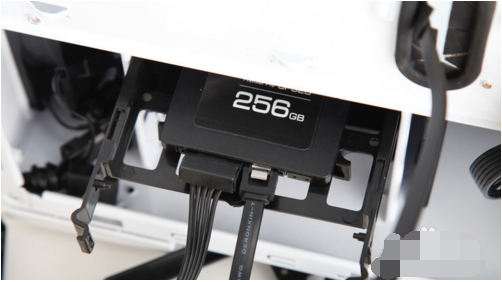

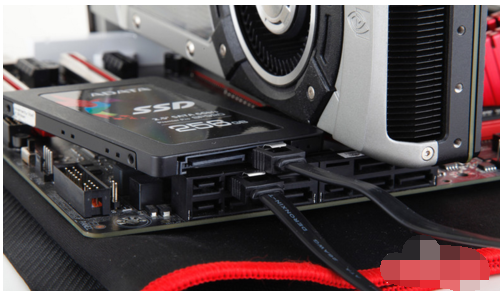

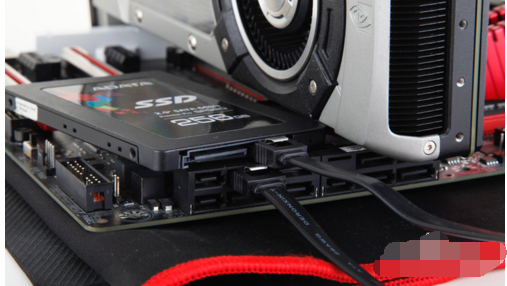

对于SATA硬盘来说,无论是拿来做仓库的机械硬盘还是当做主力盘的固态硬盘,接口都是一样的,一个供电接口,一个SATA线接口。
电脑电脑图解-9

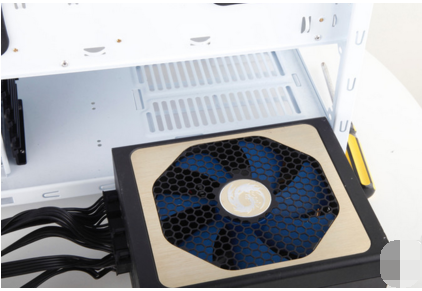

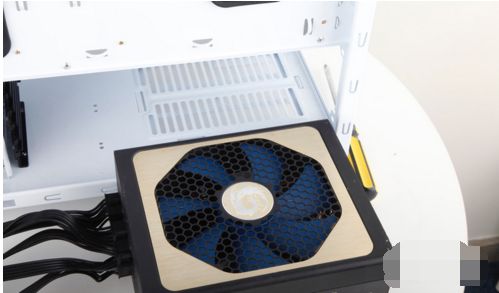

安装电源的时候要注意,电源的风扇是往外吹的,这样才能有效的散热。
diy电脑图解-10
电源选择首先要看电源的功能够不够用,避免小马拉大车,其次各电路的输出是否稳定同样很重要。
组装电脑电脑图解-11

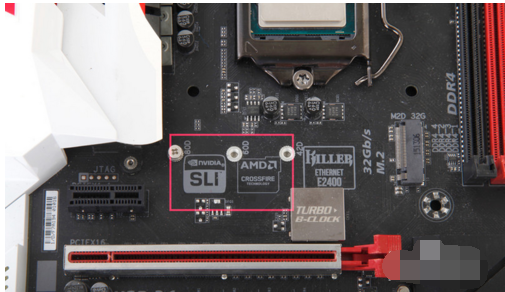

需要注意的是如果有两张显卡的话,要看主板是不是支持NVIDIA的SLI或AMD的交火,只有主板支持,两张卡才能同时使用,发挥预期的性能。
组装电脑电脑图解-12

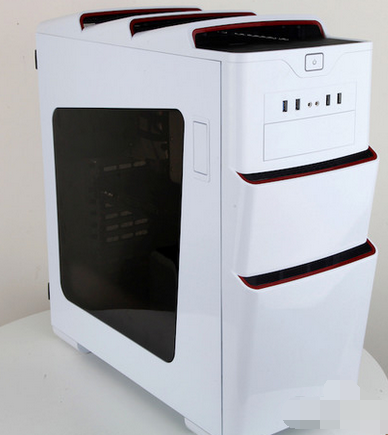

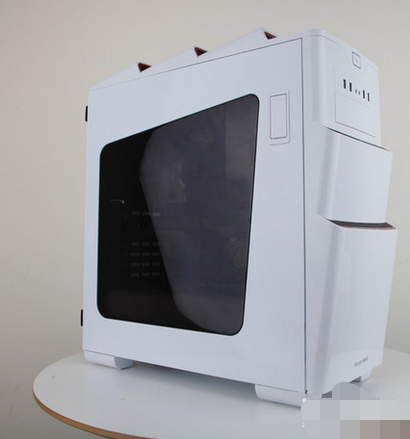

对于机箱,其实没有什么好说的,无外乎就是钢板厚点、重点、外观好看一点。像前置USB 3.0这些比较常用的功能,现在新出的机箱也基本都有。
装机电脑图解-13

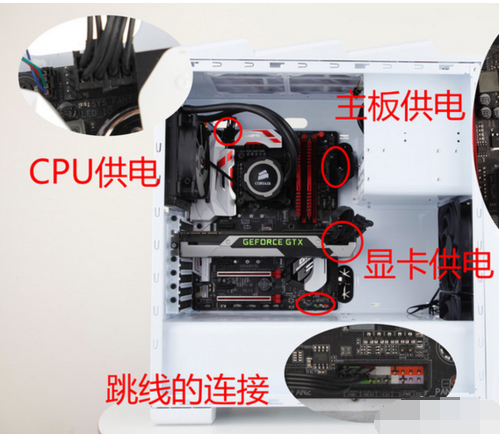

上面的硬件都准备好之后,就可以装机了,把各硬件的供电接口插上对应的电源输入就好。
diy电脑图解-14
电脑上可能比较麻烦的就是机箱的跳线,直接根据上图所示,在主板上插入对应的跳线就好。
组装电脑电脑图解-15

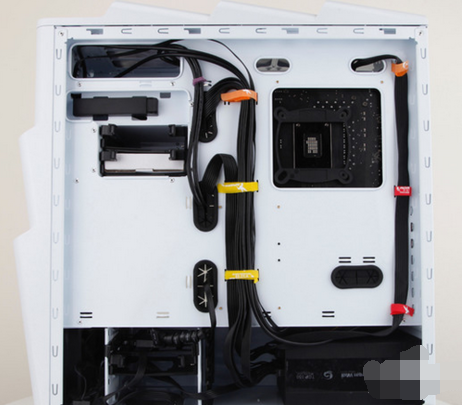

各线路都连接好以后,如果机箱内更加的整洁美观,一般都会对线材进行整理,也就是常说的走背线。
组装电脑电脑图解-16
较长的SATA线可以用螺丝刀卷起来,这样会更整洁一些。
电脑电脑图解-17
确认各线路都连接好之
电脑电脑图解-18
以上就是组装电脑的技巧方法了。
