【装机教程】分享一篇,详细的装机教程。相信对很多刚玩电脑的新手来说,装机是令他们最为头痛的事情之一,其实装机并不是一件很难的事情,相信各位阅读完这篇装机教程后,装机技术一定会突飞猛进。
一、在主板上安装好cpu和内存
Intel处理器与AMD不同,Intel把针脚挪到了主板处理器插槽上,使用的是点面接触式。这样能够有效防止CPU的损坏,但是这样的设计使得主板的cpu插槽在损坏后难以更换。
Intel也有属于自己的一

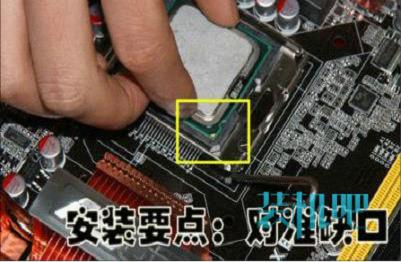

安装方法:在CPU插槽上,一边也有两个凸出的地方,而在处理器上有一边也有两个缺口,对准放下去就可以了。然后扣好扣具。
Intel处理器安装二

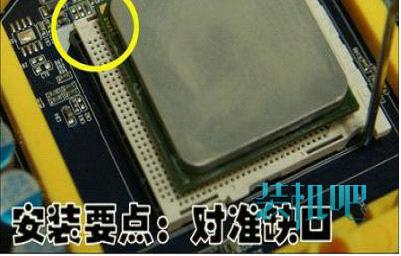

2、一般情况下AMD的处理器都有个特殊标记,仔细观察后我们会发现cpu有一个角已经做好标记,我们只要把cpu上的标识与主板插槽上的标识对应放入即可。

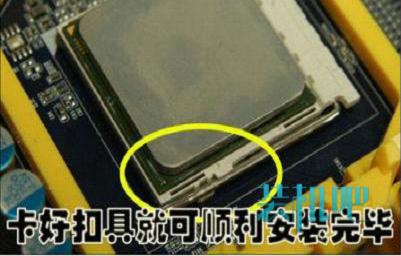

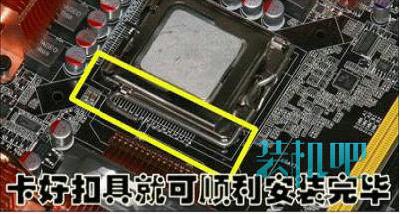

CPU插好后,扣上扣具
AMD处理器的安装

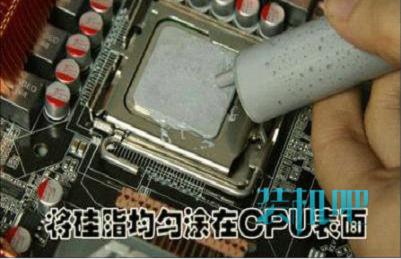

接下来,把导热硅脂均匀的抹在风扇底部,这样可以帮助cpu进行散热。

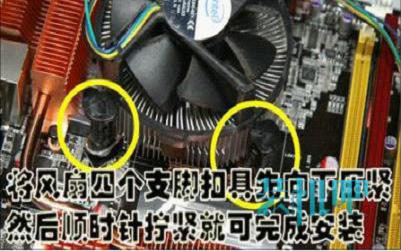

涂好硅脂后,我们就可以安装散热器了。如图所示这种Intel原装的散热器安装方法很容易掌握,对准缺口把四个支脚放好,先下压紧,顺时针拧紧就可以了。
图:安装CPU风扇

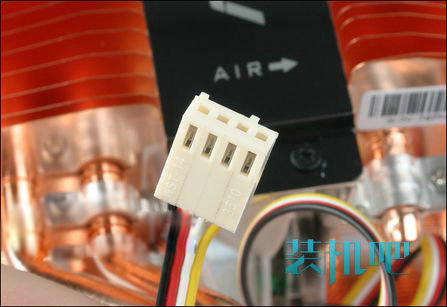

最后,要提醒大家注意cpu散热风扇自带的一条跳线接口(如下图)要接在主板上哦。

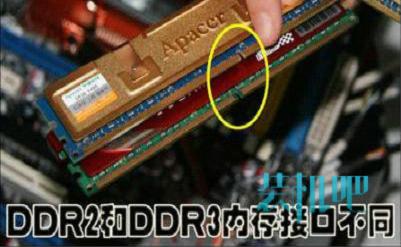

目前DDR2是的主流内存,但是现在部分高端主板已经可以提供DDR2和DDR3两种内存插槽,我们可以同过识别内存条的凹槽来识别内存条的类型,如图所示DDR3和DDR2内存接口上都有个缺口,但两者的缺口长短是不一样的。
我们只要按照插槽的设计把内存条插进去就可以了。方法很简单,只要用力按下去,卡扣就会自动弹起固定住内存。要记住的是内存条必须安装在两个颜色相同的内存插槽上,对于主板而言这样才能够组成双通道。
图:安装内存
二、安装电源和挡板

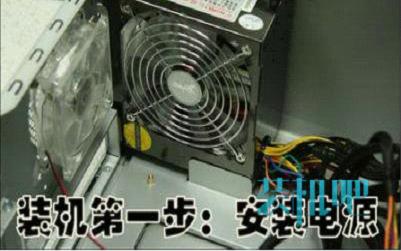

先安装电源有一个好处,可以防止后面安装的时候不小心碰坏主板。还有一点要注意,电源在安装时要把风扇朝向机箱空的一侧,而不是置于机箱顶部,这样会发生扇热不良的现象。
电源安装好后,一定要把主板I/O接口的挡板先安装好。很多机友经常在第一次装机的时候由于手忙脚乱而忘记装挡板,导致过后又要重新反工,所以特别提醒大家注意这一点。

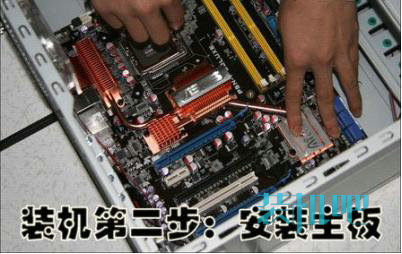

三、将主板固定在机箱内部,显卡的安装

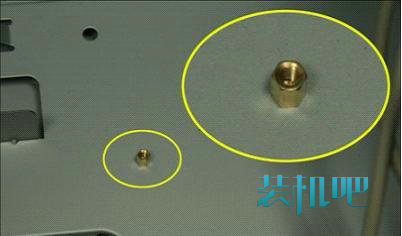

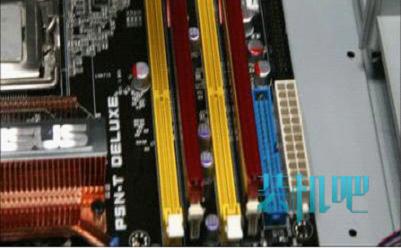

做完上述步骤后我们就可以进行固定主板的工作了,大家只要按照黄金螺丝卡座的位置把主板在机箱底部就行了。

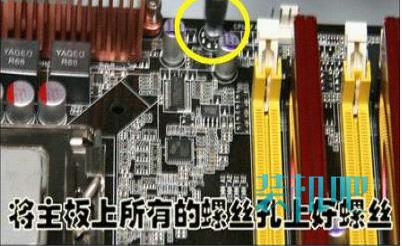

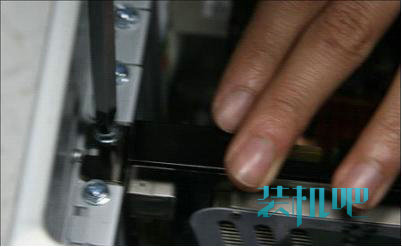

主板固定好后,将螺丝拧好就可以了
主板固定好后,如果我们需要安装独立显卡,那么我们只需抠下独立显卡插槽旁边的挡板,然后把独立显卡插进主板对应的插槽出,再拧上一颗螺丝就可以将其固定好了。
四、光驱和硬盘的安装

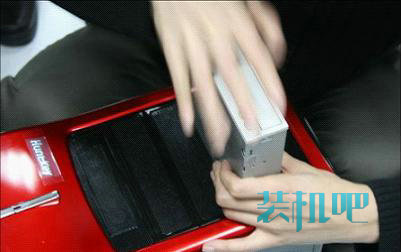

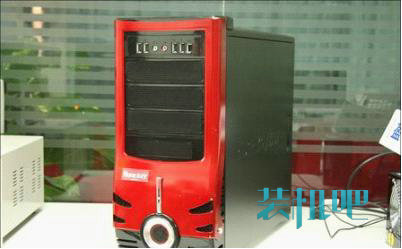

抠下机箱前面的单板,把准备好的光驱推放进去,记住要把扣具扣好,才能固定住光驱。
光驱固定的过程。

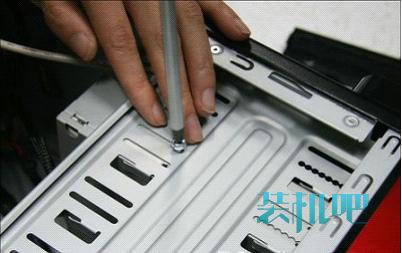

与光驱不同,硬盘是从机箱内部推进的,我们只需要把硬盘固定在硬盘托架上,拧紧螺丝即可。

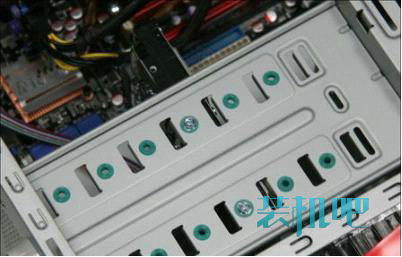

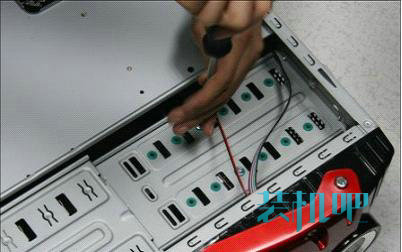

固定光驱和硬盘的时候许多人会将背部的螺丝忘记上,如下图所示,将机箱另外一侧的挡板打开,将另外一面的螺丝上紧才能更好的平衡光驱和硬盘。
五、所有数据线、机箱跳线、电源线的链接方法
现在的主板的电源插座上都有防呆设置,错误的插法是无法插进去的。主板供电接口分为两部分:先插最重要的24PIN供电接口,一般在主板的外侧,很容易找到,对准插下去就可;除了主供电的20/24 PIN电源接口之外,主板还有一个辅助的4/8PIN电源接口供电,主板的4/8PIN电源在CPU插座附近。
光驱和硬盘的电源线、数据线连接示意图。

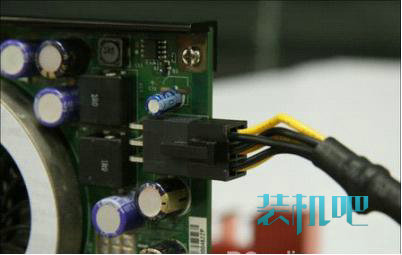

另外,如果玩家的显卡需要外置供电的话,那还得将显卡的外置电源接口接好,如下图所示。

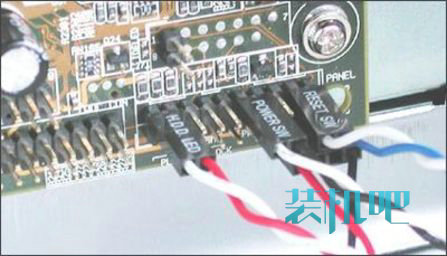

一般来说,我们需要连接电源信号灯、硬盘信号灯、PC喇叭、ATX开关、Reset开关,其中ATX开关和Reset开关在连接时无需注意正负极,而PC喇叭、硬盘信号灯和电源信号灯需要注意正负极,白线或者黑线表示连接负极,彩色线(一般为红线或者绿线)表示连接正极(图)。

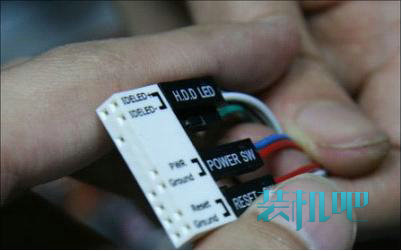

但是,什么烦琐的事都有解决方法,例如我们这款华硕主板提供了特色的接线工具Q-connector,我们可以通过这个工具,先在机箱外把线接好,然后通过这个工具,很方便的接在主板上。玩家可以在各大电脑城花5块钱左右就可以购买到这样的工具了,轻松解决你在昏暗机箱里接条线的麻烦。
最后给希望大家可以用橡皮筋或绳子之类的东西将机箱内的线路固定理顺,以免影响以后电脑的使用。
