Warning: Use of undefined constant title - assumed 'title' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 152 华硕 bios设置,详细教您华硕笔记本bios设置怎么操作
- 分类:win8 发布时间: Warning: Use of undefined constant newstime - assumed 'newstime' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 156 2017年12月26日 12:00:58
使用笔记本的电脑都多少知道,华硕笔记本在硬件上不但拥有强大的规格,还有拥有众多扩展功能,如NFC无线充电等,且主板附送产品规格颇为强大。所以使用的用户数不胜数,但是知道华硕笔记本bios设置的用户,却少的出奇,下面,小编就和华硕笔记本的用户一同来探究一下硕笔记本bios设置的相关操作。
华硕这个品牌属于台湾知名的电脑股份公司,除此之外,它还属于全球第三,所以使用华硕笔记本的用户自然不用小编多说了,而在操作的过程中,难免会需要进入bios进行一些操作,例如电脑需要使用U盘重装系统时,就需要进入bios进行U盘进行设置了,那么华硕笔记本bios设置怎么操作呢?下面,就是小编为大家整理了篇关于华硕笔记本bios设置的操作教程。
华硕 bios设置

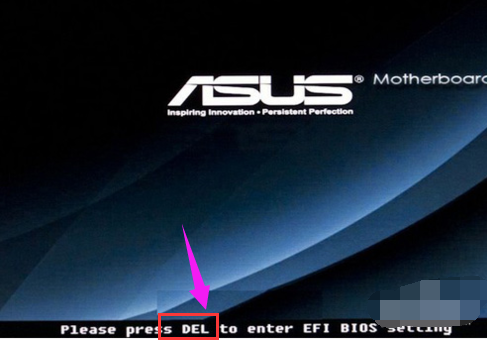

在按下主机电源按钮之后,立即按DEL键进入CMOS设置(不同型号主板进入方式不同,可根据页面提示操作如F2、ESC等键)。
笔记本电脑图解-1
可以看到BIOS的主界面,如果当前显示的是英文,可通过右上角的语言栏进行设置。
bios设置电脑图解-2
(注意,如需要保留画面,可在电脑上插入U盘,按F12保留当前页面图片)。
笔记本电脑图解-3
在主页面,我们可以看到当机主板基本的状态,如时间、CPU与主板的温度、电压等情况。
bios设置电脑图解-4

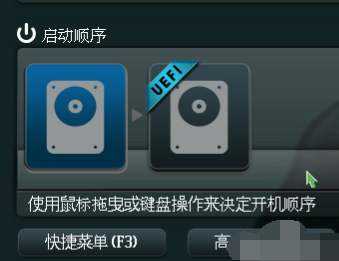

在最下方有“启动顺序”栏位,用鼠标拖动可改变启动选项,
bios设置电脑图解-5
如:我们在使用U盘PE工具安装系统时,可将UEFI调至第一位置。
bios电脑图解-6

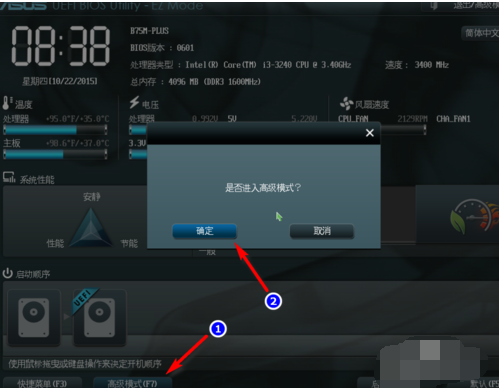

然后,用鼠标点击“高级模式(F7)”,在弹出的页面点击“确定”。
bios设置电脑图解-7
可以看到概要、高级、监控、启动、工具等选项。
bios设置电脑图解-8

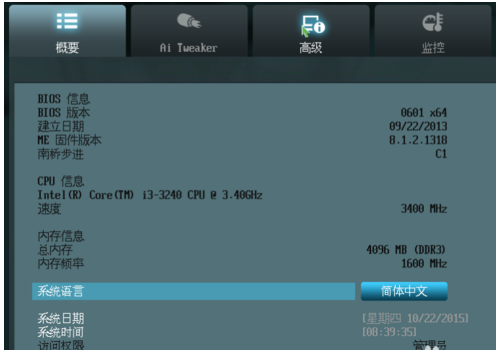

其中概要中,主要介绍BIOS的信息、版本以及当前CPU、内存、日期等情况。
bios电脑图解-9
在高级选项中,可以点击”高级电源管理(APM)“选项,设置电脑的定时开机功能。进入后,开启由RTC唤醒
bios设置电脑图解-10
在高级选项的”SATA设置“中,可更改硬盘的模式。
bios设置电脑图解-11
在”高级“的USB设置中,可根据需要开机USB模式。如是否开启或关闭USB2.0 or 3.0端口,南桥xHCI的识别模式。
bios设置电脑图解-12

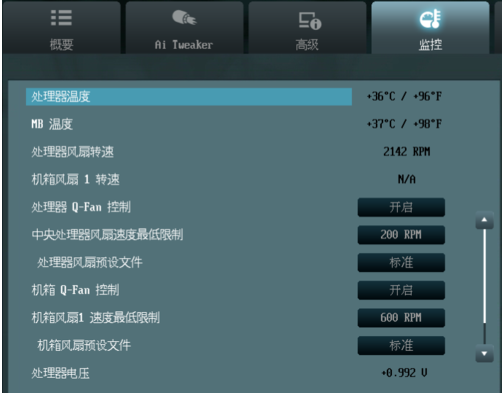

在”监控“选项中,BIOS可以时时侦测主板的温度、风扇转速、电脑等情况。
bios电脑图解-13
在启动一项,可以设置主板的开机启动速度、USB键盘/鼠标的支持等。
最后的”工具“其实是BIOS更新选项
笔记本电脑图解-14
可以从官网下载BIOS最新资料,放至U盘中,插入电脑后进行更新操作。
bios电脑图解-15
关于华硕笔记本bios设置的操作教程,小编就跟大家讲到这里了。
