Warning: Use of undefined constant title - assumed 'title' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 152 b75主板可以支持nvme协议吗
- 分类:硬件教程 发布时间: Warning: Use of undefined constant newstime - assumed 'newstime' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 156 2022年03月13日 08:37:00
b75主板是目前比较早出的电脑主板了,有些网友想在b75主板上安装固态硬盘,想要选支持nvme协议的硬盘,不知道b75主板支持nvme协议吗?下面就给大家解答下b75主板是否支持nvme协议。
b75主板可以支持nvme协议吗?
答:B75主板是没有nvme协议的,不过如果想给这块主板用nvme固态做主硬盘,需要自己往BIOS添加支持nvme的模块,做从盘直接插PCI-E插槽就能用了。以华擎B75M-ITX主板添加nvme模块为例,具体步骤如下:
1、下载官方原版bios:B75M-ITX(1.90)ROM
2 、UEFITool_025工具加载bios
3 、选择好之后打开,在工具界面按下 CTRL+F 进行搜索,再跳出的窗口点击 GUID,输入:7BB28B99-61BB-11D5-9A5D-0090273FC14D,点击 OK
4、找到raw section ,右键替换选择新的开机图logo.raw文件
5、 另存为logo.rom
6 、mmtool5.07工具加载logo.rom
7 、找到csmcore双击
8 、浏览添加nvme模块,选择压缩,选择插入
9 、提示成功后另存为b75mitxnvme.rom
10 、拷贝文件到fat32格式的u盘,重启刷入bios即可。
总结:

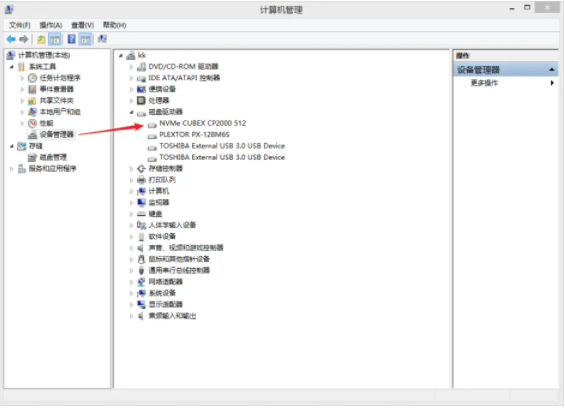

1、使用pcie转接卡,系统正常识别nvme cubex cp2000 512;

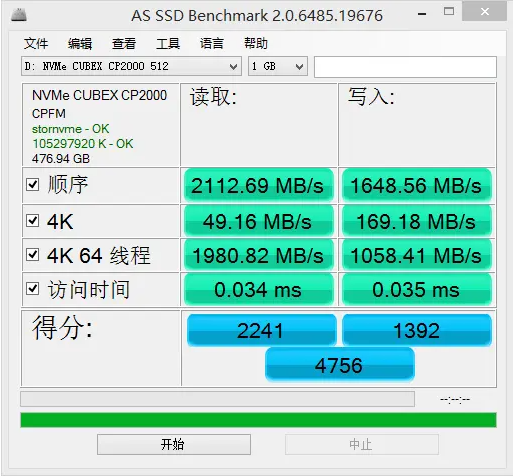

2、使用系统默认nvme驱动,开机启动、安装系统、测速均正常;
3、bios中nvme选项显示为pata;
4、其他品牌的nvme ssd没有尝试,不能保证所有nvme的ssd都能正常使用。
以上便是关于b75主板可以支持nvme协议吗的解答,以及给b75主板添加nvme模块的方法介绍,希望能帮到大家。
