PCIe是现在电脑上面通用的数据接口,而M.2是取代基于mini PCIe改良而来的mSATA固态硬盘。PCIe数据直接通过总线与CPU直连,而M.2接口可以支持SATA和PCIe的通道,下面小编来跟大家说说m.2和pcie有什么区别的介绍。

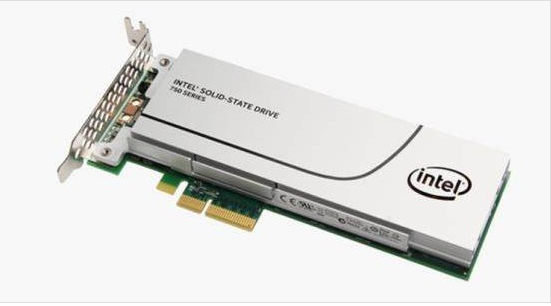

PCIe
如果说SATA固态硬盘是固态硬盘中的老大哥，PCIe接口就是固态硬盘接口中的贵族，与闪存颗粒可以说是天生一对，能够非常好的展现闪存的读写速度。PCIe是PCI Express的简写，是新一代的总线接口，是由20多家业界主导公司共同起草并完成的新技术规范，采用点对点的串行连接，可以将数据传输率提高到一个很高的频率，以此提供更高的带宽。而PCI Express的接口根据总线位宽不同，还可分为X1、X4、X8和X16。目前使用较多的是PCIe X4，市面上流通较多的是PCIe 2.0版本和3.0版本，对应的X4带宽为16Gbps/32Gbps，折算成传输速率约为2GB/s和3.93GB/s，相比SATA接口，这已经是非常恐怖的速率了。当然，另一方面，PCIe接口的固态硬盘其价格也相对会贵一些。

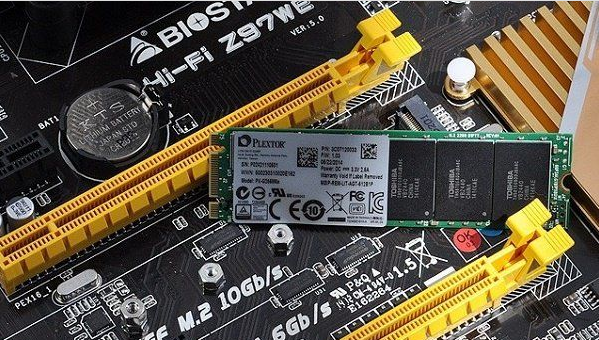

M.2
M.2原名为NGFF接口，标准名称为PCI Express M.2 Specification。它是为超极本（Ultrabook）量身定做的新一代接口标准，以取代原来基于mini PCIe改良而来的mSATA固态硬盘。无论是更小巧的规格尺寸还是更高的传输性能M.2都远胜于mSATA。随着SATA接口瓶颈不断凸显，越来越多的主板厂商也开始在自家产品线上预留M.2接口，主流的M.2接口有三种尺寸，分别是M.2 2242、2260、2280。M.2接口可以同时支持SATA及PCI-E通道，后者更容易提高速度。这里需要注意的是，M.2的连接器有三种类型，被称为Socket 1、2、3。Socket1由于尺寸比较特殊，比较少用，最多是Socket 2和3。Socket 2支持SATA和PCIe X2接口，Socket 3则只支持PCIe X4接口。
以上就是m.2和pcie有什么区别的介绍啦，希望能帮助到大家。
