Warning: Use of undefined constant title - assumed 'title' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 152 微星x570 gaming plus超频如何设置
- 分类：硬件教程 发布时间： Warning: Use of undefined constant newstime - assumed 'newstime' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 156 2022年01月18日 09:14:00
最近有网友想在微星x570 gaming plus主板中尝试超频的操作，但却不清楚微星x570 gaming plus怎么超频，别担心，小编这就把微星x570超频设置教程分享给大家，我们一起来看看吧。

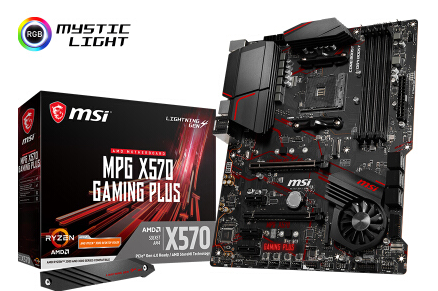

微星x570 gaming plus
首先在超频之前我们需要做好散热的准备，做好散热工作，避免cpu、显卡因为温度过高而导致降频，我们都知道CPU和显卡都是有功耗墙和温度墙的，也就是说到了一定的温度上限，也就是我们所说的装上温度墙，CPU就会强制降频以减少发热，避免因高温造成的硬件损坏。所以做好散热工作一方面是为了保护硬件，另一方面也是非常直观的提升性能的方式。
散热方面准备好之后，开始进入到电源方面的准备当中，在超频的时候必然会带来功耗方面的显著提升，如果你的电源在不超频的情况下本身就是在接近满负荷甚至超负荷运行，那么超频带来的巨大功耗提升可能就会让它直接Boom了。所以在超频前确认电源的额定功耗，尤其是+12V额定功耗是非常重要的，这不仅仅关乎平台的稳定性，而且还关乎到一个用电安全的问题。
只是cpu超频的情况下，额定功耗在650w足够了，哪怕是9900kf,10700k这样的功耗大户，撑死算他300W一般也就到极限了，留300W给微星x570 gaming plus主板，戳戳有余。
如果是cpu和显卡双超频，在CPU是12-16核心，显卡是顶级显卡的情况下，建议额定功耗在1000w起步，毕竟存在一个瞬时功耗的问题，高端U和顶级卡超频后的功耗往往和官方所谓的TDP相差甚远。
cpu超频步骤
1.首先还是开机按del进入BIOS设置，然后按F7进入高级设置，找到OC菜单，点击【advanced cpu configuaration】。

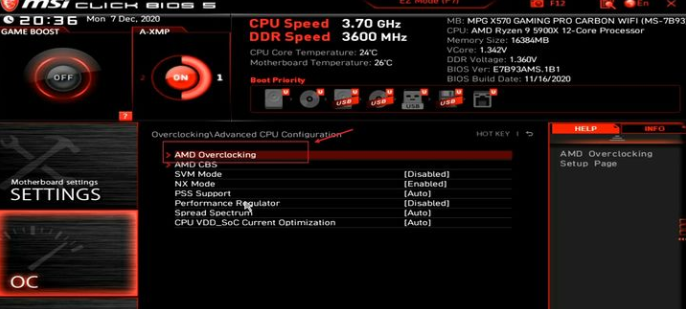

2.选择后，我们点击【AMD Overclocking】。

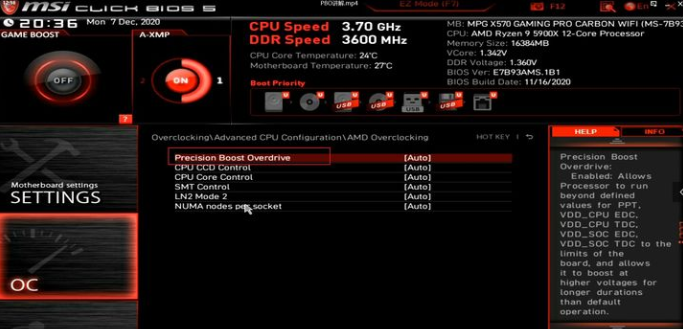

3.在打开的页面中可以看到【CPU PBO】选项。

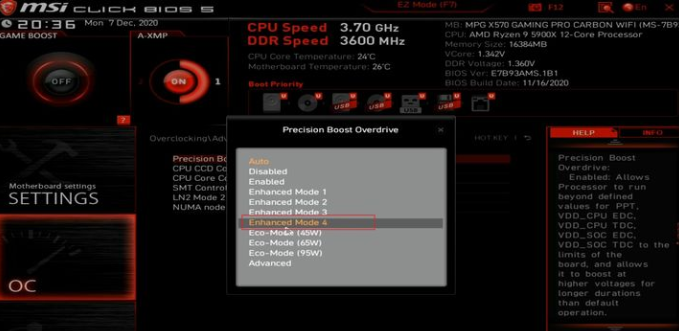

4.微星的主板一般会提供7个预设模式，前面的Enhanced Mode1-4分别是4档超频模式，下面的Eco1-3档是3档省电模式。

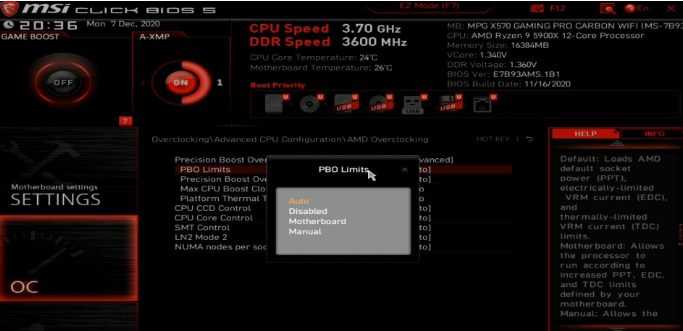

5.直接选最后一项【Advanced】，进入手动设置的操作，然后就会多出来几个小选项。 第一项【PBO Limits】就是PBO的一个控制上限，我们可以直接算disabled，将其关闭以追求最大性能。

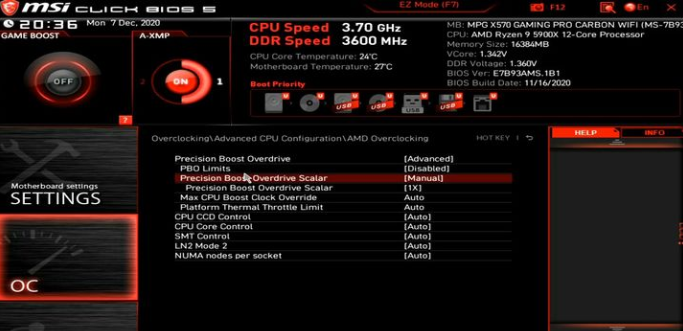

6.第二个【Precision Boost Overdrive scalar】一个PBO档位，一般选5X就足够了。

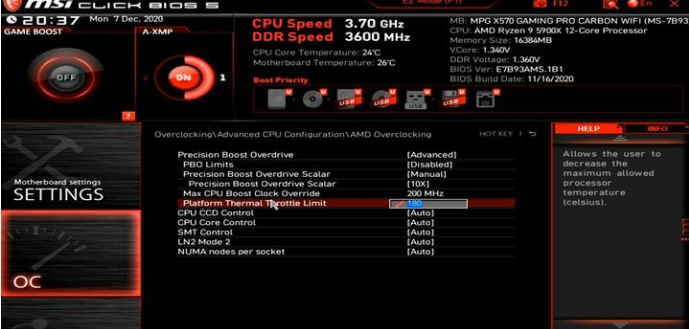

7.而【Max CPU boost Clock override】是Boost的一个频率设置，最后一项是温度上限控制，我们随便填个200左右的就行。

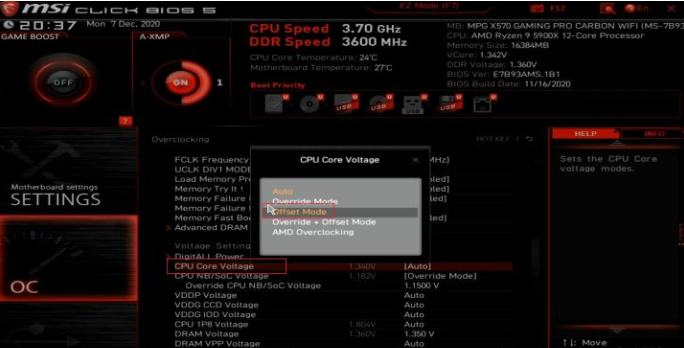

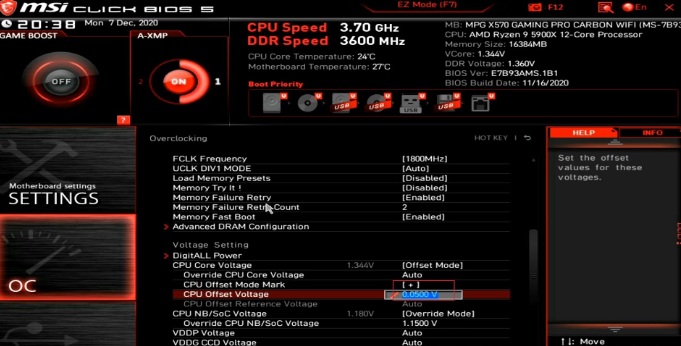

8.返回上一级菜单，在电压选项中找到【CPU Core voltage】，我们将CPU电压模式改为【offse】补偿模式。
9.接着我们将【offset mode mark】改为+，适当增加电压，一般0.05V就够，如果出现重启不稳定的情况，我们适当的增加一点电压即可。
这就是微星x570超频设置教程，希望可以给大家提供帮助。
