Warning: Use of undefined constant title - assumed 'title' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 152 教你如何看内存条上面参数详解
- 分类:硬件教程 发布时间: Warning: Use of undefined constant newstime - assumed 'newstime' (this will throw an Error in a future version of PHP) in /data/www.zhuangjiba.com/web/e/data/tmp/tempnews1.php on line 156 2021年09月03日 11:05:00
对于一根内存条来说,影响它性能的因素有很多,首先是颗粒,全球能够提供内存颗粒的厂商并不多,目前的主流的是三星、海力士、镁光这三大厂商。三星是存储领域毫无意外的老大,这三大厂商内存颗粒性能排序为三星>镁光>海力士,接下来小编就给大家分享下内存条上面参数颗粒怎么看。
内存条上面参数详解:

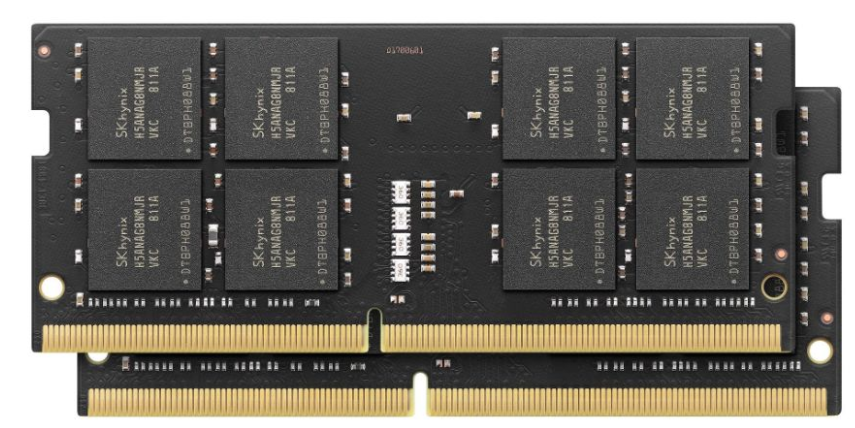

1.我们以以苹果DDR4 2666MHz 64GB(2*32GB)笔记本内存条为例

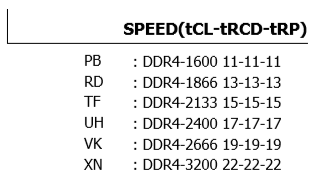

2.这款电脑的内存条,采用的颗粒是海力士的H5ANAG8NMJRVKC。海力士DDR4颗粒编码一共14位。前4位基本是固定的,不用看,我们看后10位——AG8NMJRVKC(第5-第14位)。第5、6、7位表示颗粒容量参数,这里AG8表示颗粒16GbX8。第8位,表示Die的封装方式,这里N表示非TSV高密度封装。第9位,表示DIE的批次,这里是M,表示1st,第一等级/批次。第10位,表示封装类型,这里J,表示倒装。第11位,表示封装材料,这里R表示,无铅无卤符合ROHS标准。第12、13位,表示速度,这里VK表示DDR4-2666 19-19-19。第14位,表示工作温度和能源消耗,这里C,表示适合工作环境0-85摄氏度(消费级颗粒),能源消耗正常。
3.第九位批次/等级。
4.我们这里只是简单的讲了下海力士DDR4内存颗粒的编码规则。对于我们一般消费者来说,不一定要去了解全部14位编码。我们只需要看第9位,和第12、13位编码,看懂内存颗粒的等级/批次和速度性能即可。海力士H5ANAG8NMJRVKC,我们可以理解为,MJR等级的16Gb DDR4-2666 19-19-19颗粒。

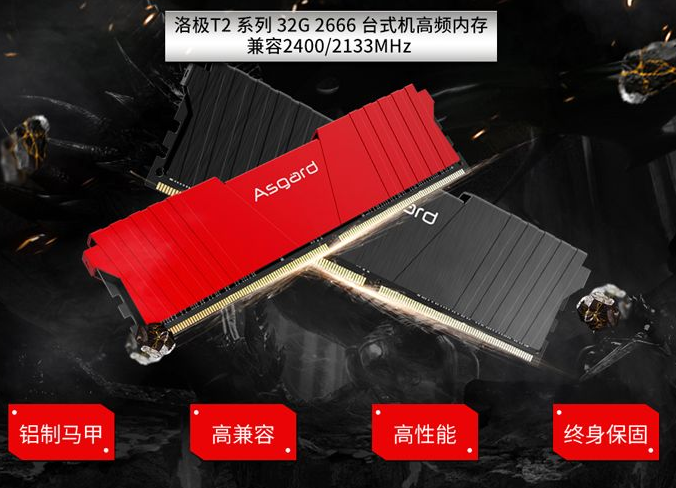

1.以阿斯加特洛极T2 2666 32G 单根超大容量DDR4内存条为例

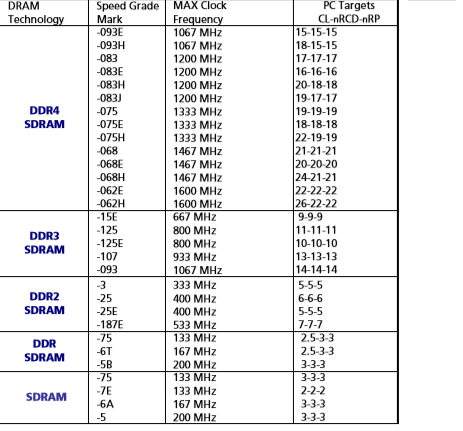

2.款超大容量的DDR4内存是镁光的MT40A2G8VA-083:B颗粒。第1、2位,表示厂标,MT表示镁光。第3、4位表示内存颗粒是多少代的,这里40,表示是DDR4的颗粒。第5/5、6位,表示电压,这里A,表示1.2V。这里2G8,表示2GbX8。“-”号前,VA表示DRAM封装代码。“-”号后,“:”号前,表示内存颗粒的速度性能,083,表示DDR4-2400MHZ 17-17-17。“:”号后一位表示模具修订代号/等级/批次,这里B,可视为Bdie。
以上就是关于内存条上面参数详解的内容,其实,我们在看内存颗粒时,往往只需要了解内存颗粒的等级和速度性能,用不着详解每一个编码参数,希望可以帮助到大家。
