今天有朋友找小编要华硕主板bios设置图解,他们不知道华硕怎么进入bios这是为什么呢?原来华硕主板的bios设置今天有了新的界面,导致很多朋友需要主板的bios设置图解才能彻底摸清楚华硕bios设置的具体内容。那么就让小编给大家带来华硕主板bios设置图解,给大家详细讲解一下华硕主板的bios设置吧!
华硕主板bios设置图解图1

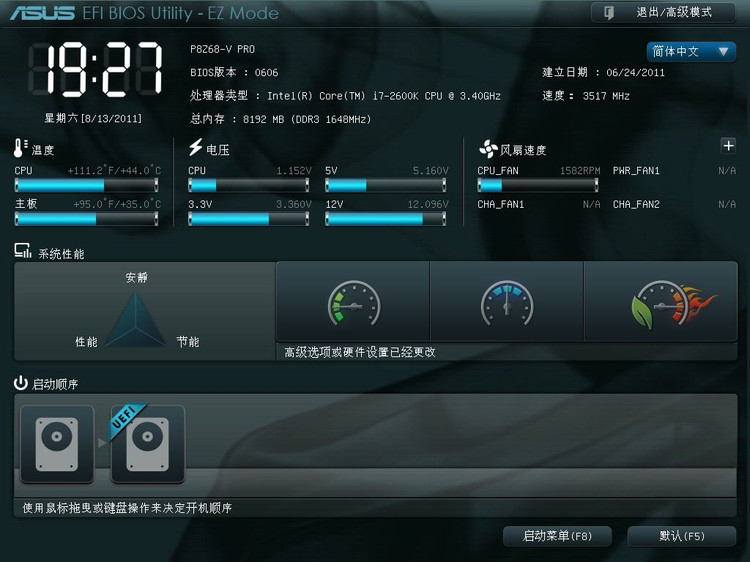

这是给初学者使用的简单界面,分 节能、标准、最佳化 三项点击即可。启动选项,将你要的设备拖到前面就行。
点击“退出/高级模式”选择进入高级模式:
华硕主板bios设置图解图2

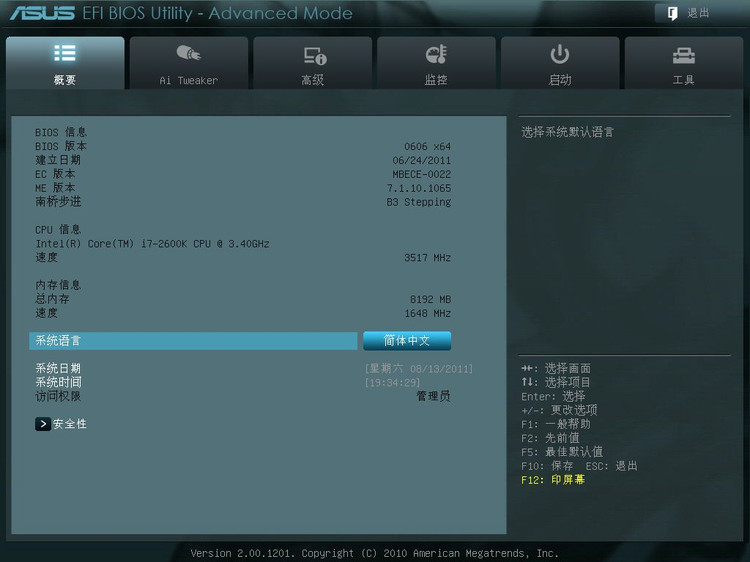

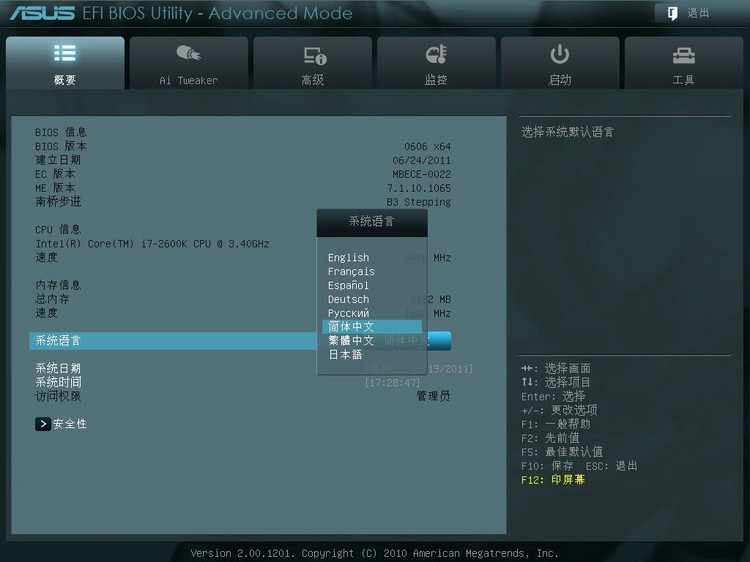

可以选择界面语言:
华硕主板bios设置图解图3
点击“安全性”可设置密码:
华硕主板bios设置图解图4
自己的电脑就不要设了,点击“Ai Tweaker”进入超频选项调整:
华硕主板bios设置图解图5
全默认,不超频。下面还有:
华硕主板bios设置图解图6

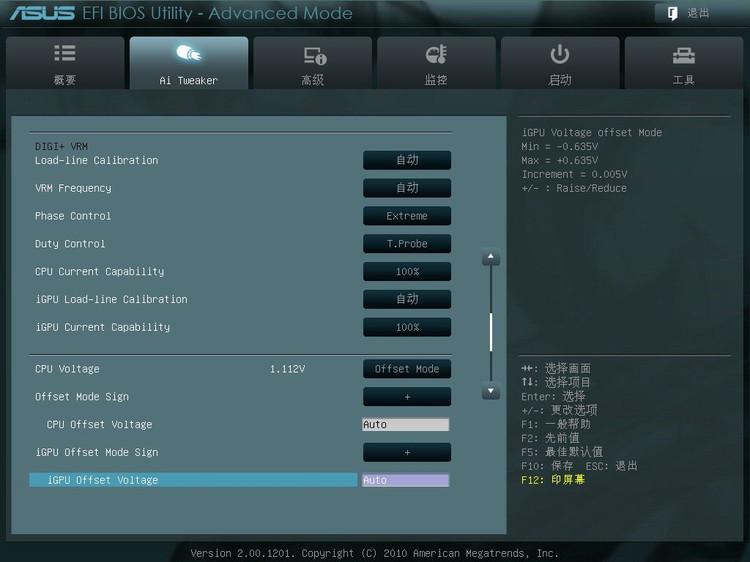

华硕的DIGI+VRM选项。还有各种电压的调整:
华硕主板bios设置图解图7
基本都是自动,突然发现内存电压是1.665V!!看来默认也不靠谱呀。SNB平台的规范里要求内存电压不超过1.575V 马上改为手动:
华硕主板bios设置图解图8
外频被主板自动设为103Mhz,经证实会二启。改为100Mhz就不会了,对2600k来说不用超外频,只调倍频就好。
华硕主板bios设置图解图9

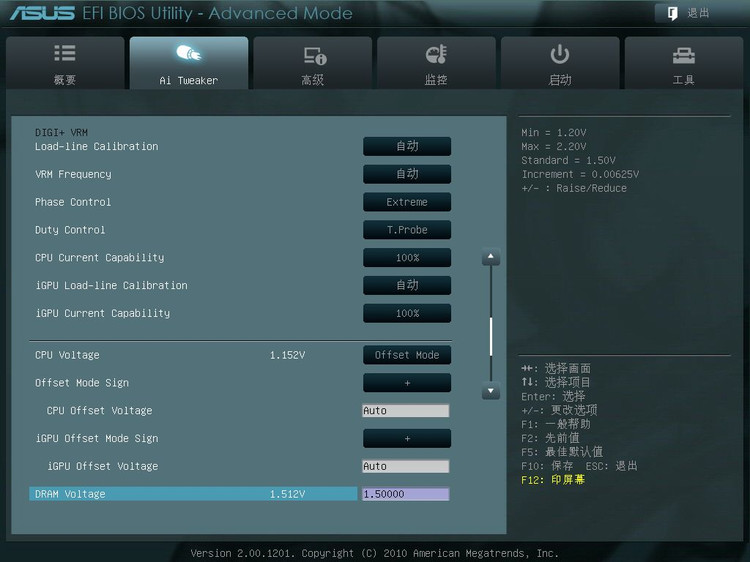

内存电压手动改为1.5V
华硕主板bios设置图解图10
再修改后
华硕主板bios设置图解图11

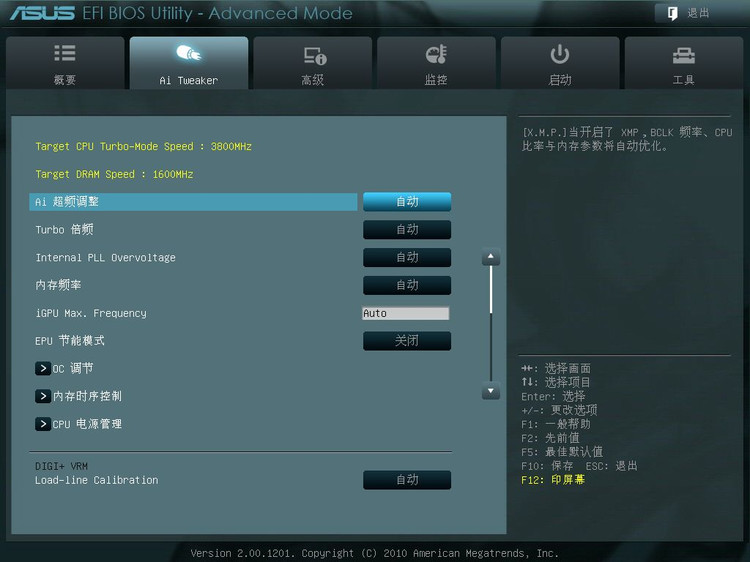

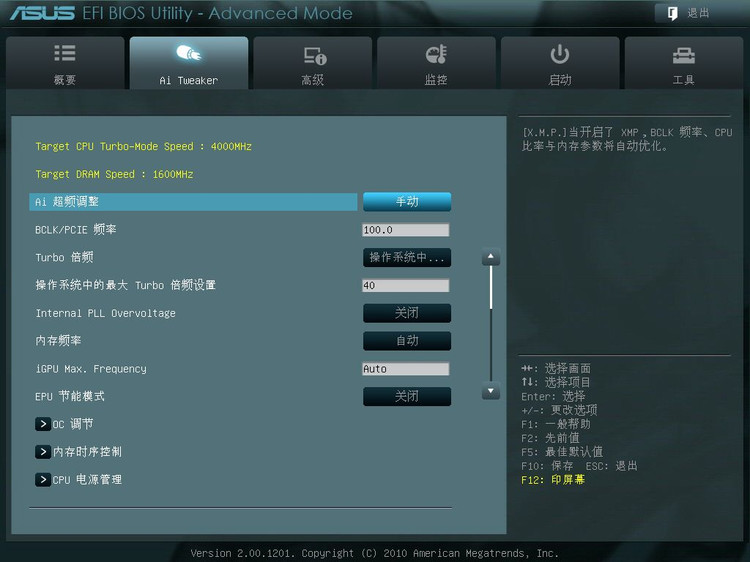

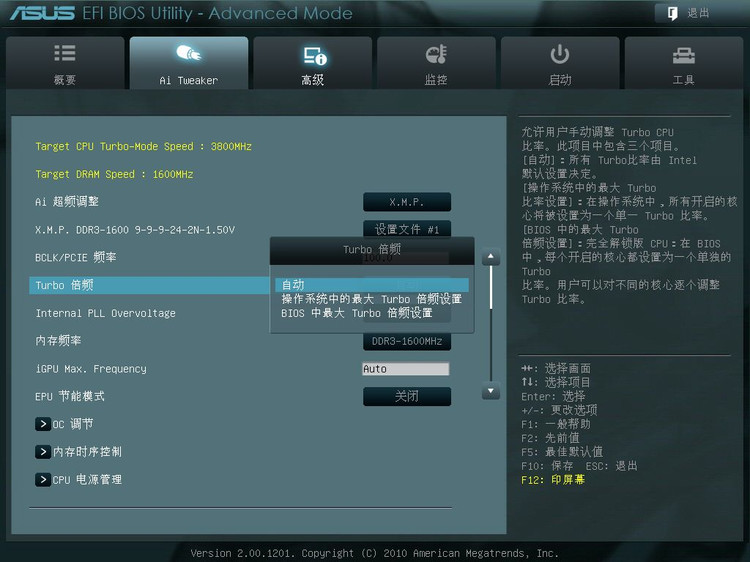

倍频设为“操作系统中的最大Turbo倍频设置”就可以调节倍频了,设自动就不超频了。
华硕主板bios设置图解图12
华硕主板bios设置图解图13
PLL Overvoltage设为“关闭”,超5G以上才需要打开,我只是小超一下。
超频只是玩玩,我这U默认电压超4.5G没有问题。平时用还是不要超频的好,最终设置:
华硕主板bios设置图解图14

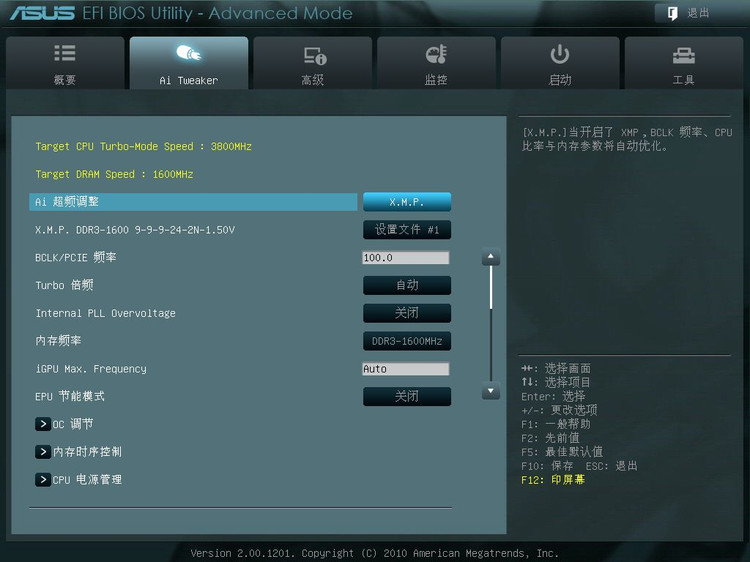

内存支持XMP最好打开,省心
华硕主板bios设置图解图15

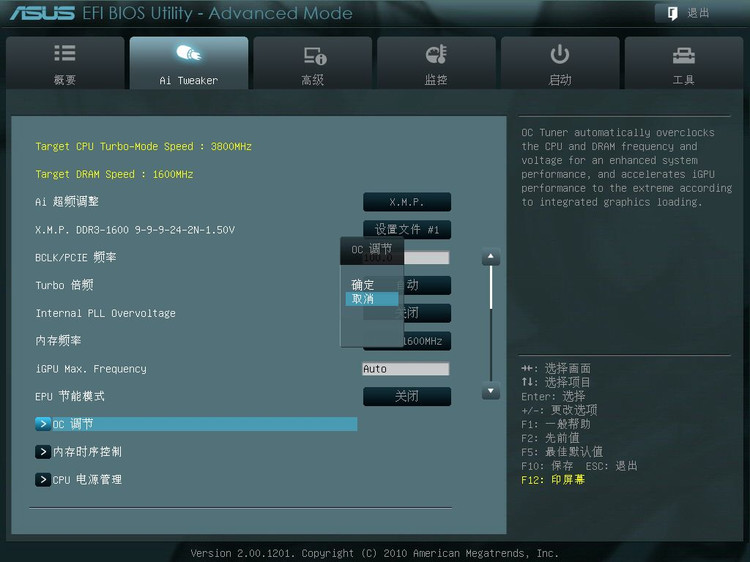

不超频,点“取消”
华硕主板bios设置图解图16

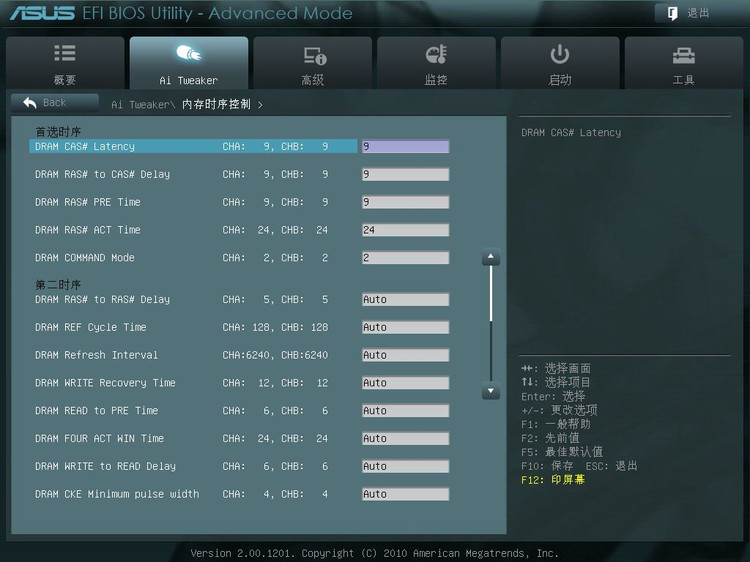

先是默认,后改COMMAND Mode为1也正常
华硕主板bios设置图解图17

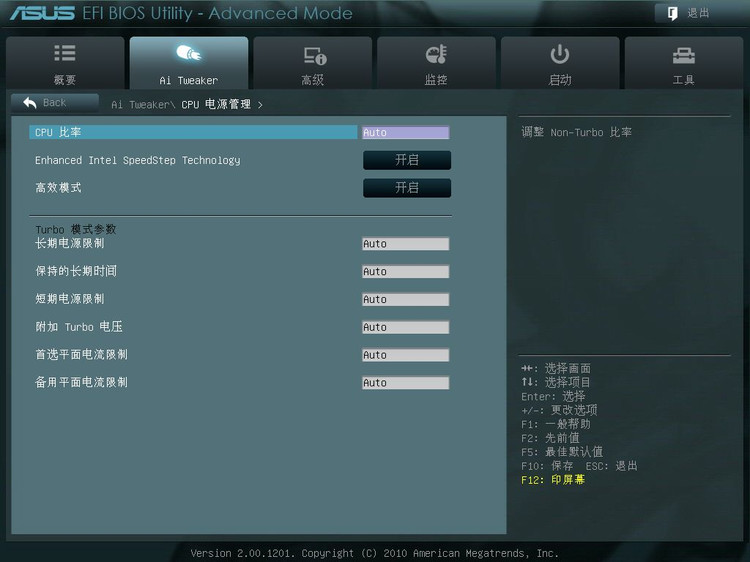

CPU电源管理 全默认
华硕主板bios设置图解图18
不超频 DIGI-VRM 全默认就行。
华硕主板bios设置图解图19

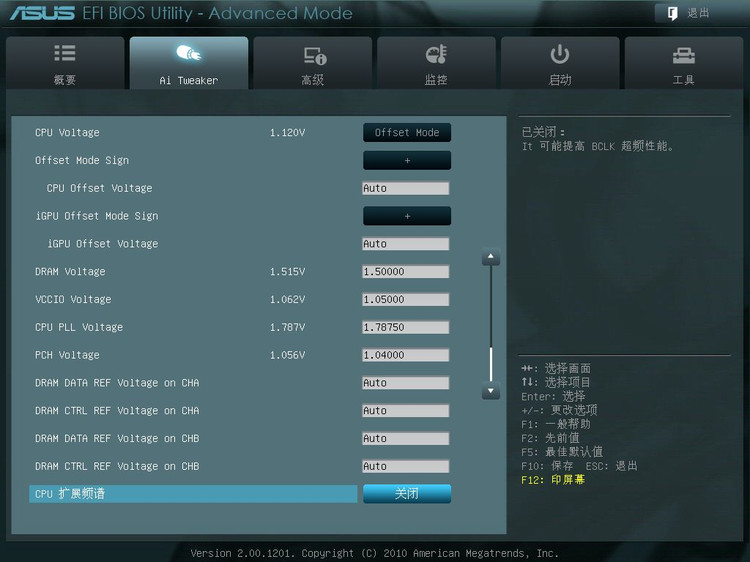

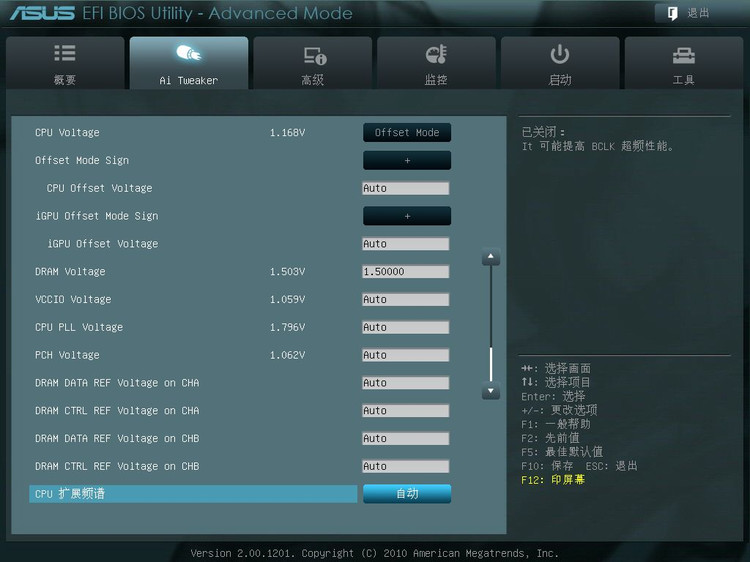

华硕的板喜欢加压,这几项手动调整到标准电压。再看“高级”选项:
华硕主板bios设置图解图20

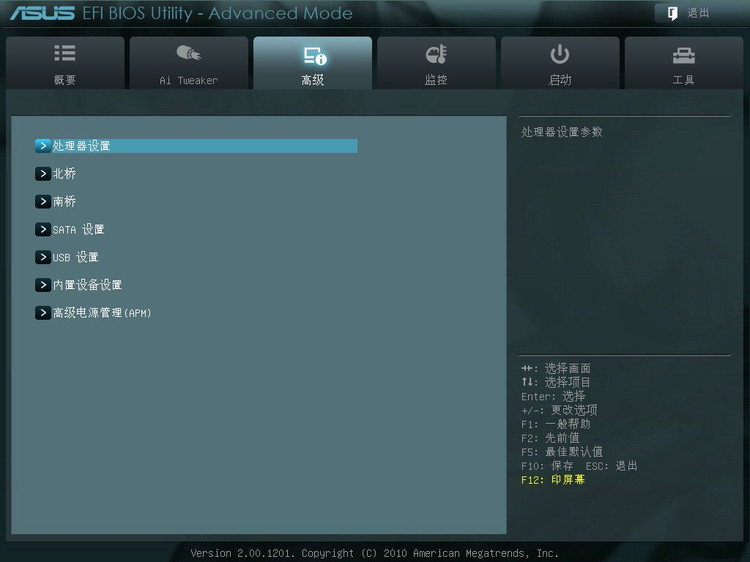

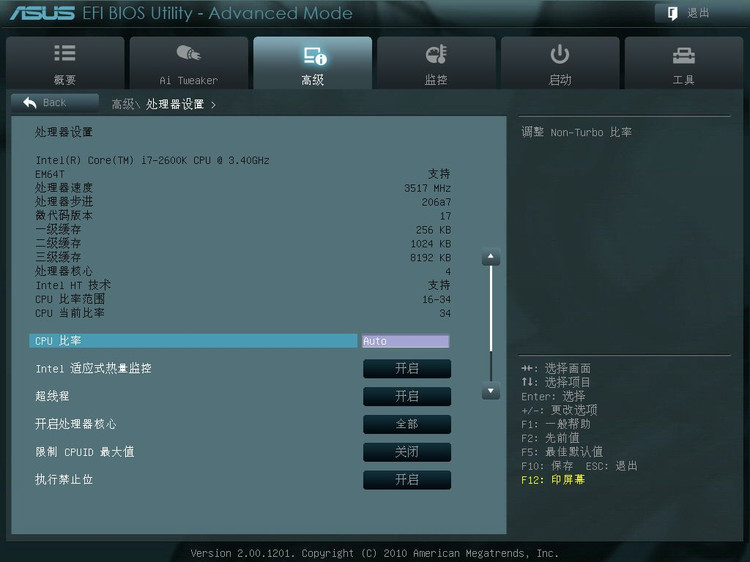

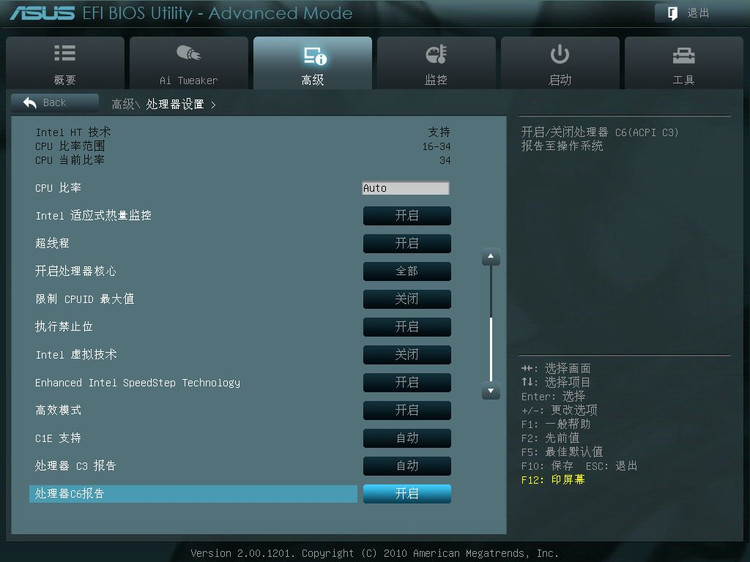

高级选项的主菜单,处理器设置:
华硕主板bios设置图解图21
一般全默认
华硕主板bios设置图解图22
北桥:
华硕主板bios设置图解图23
华硕主板bios设置图解图24

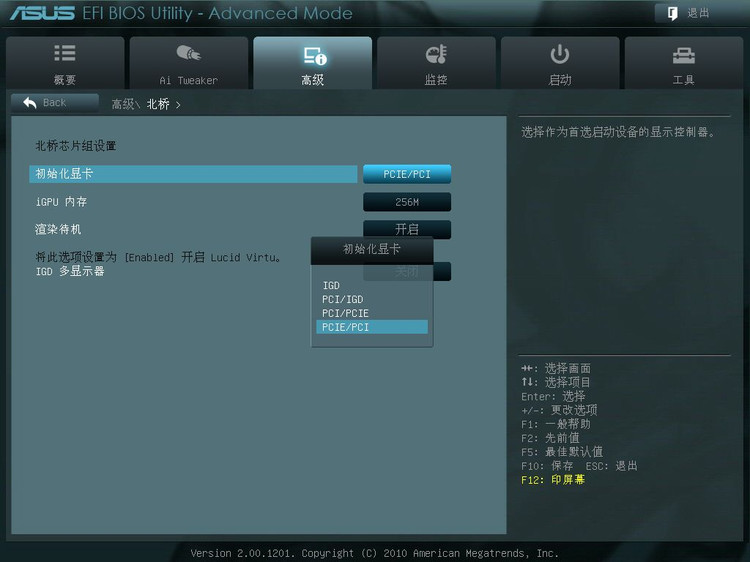

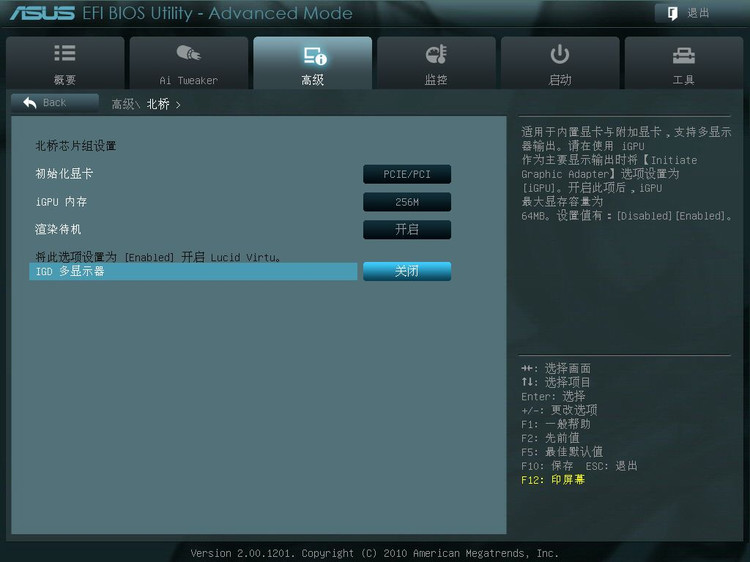

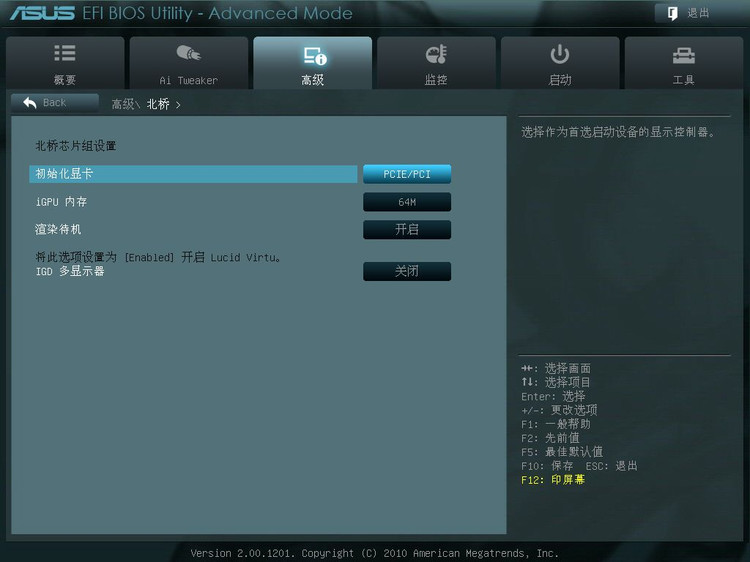

需要显卡切换的就先设“初始化显卡”为IGD 再打开“IGD多显示器”
华硕主板bios设置图解图25

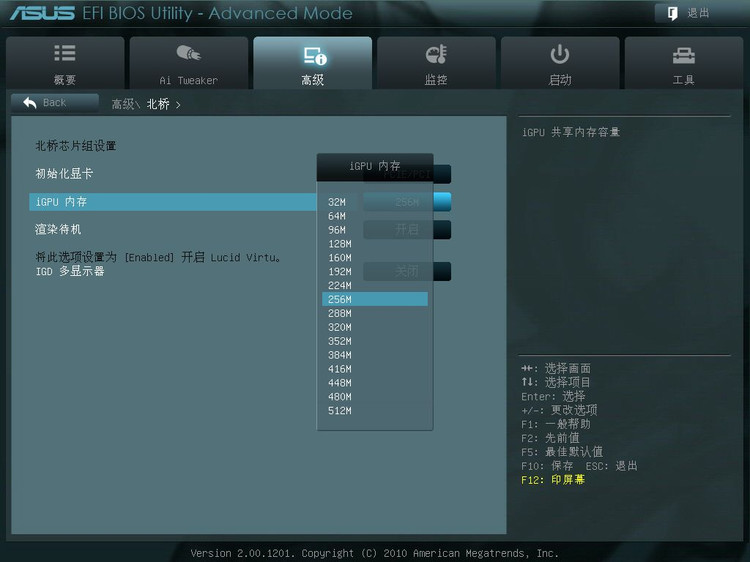

显存调整
华硕主板bios设置图解图26

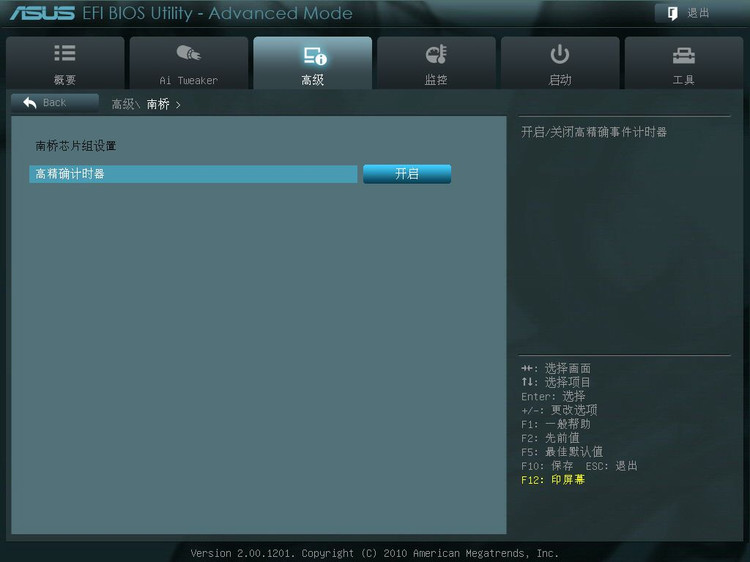

南桥:
华硕主板bios设置图解图27
SATA设置:
华硕主板bios设置图解图28
此时没有硬盘,全是 不存在
华硕主板bios设置图解图29

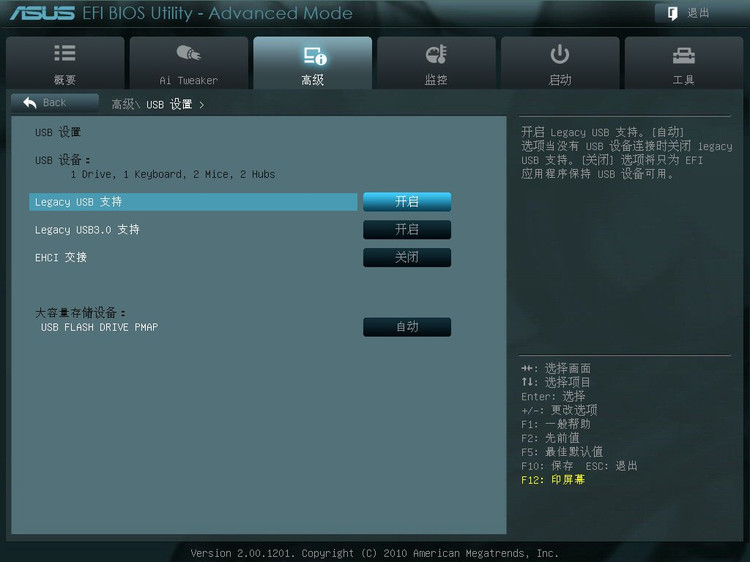

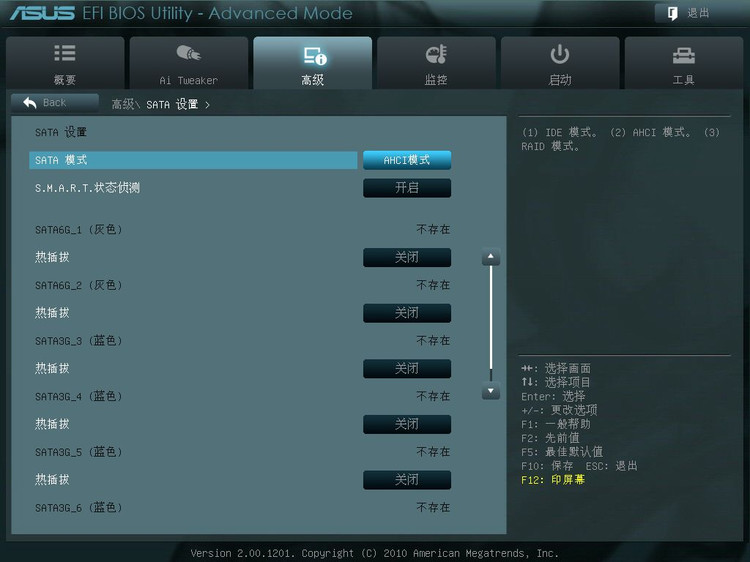

SATA模式有IDE、AHCI、和RAID三种(这里调整的是z68芯片组带的6个SATA接口)热插拔默认是关闭的,需要时可以打开。USB设置:
华硕主板bios设置图解图30
华硕主板bios设置图解图31
华硕主板bios设置图解图32

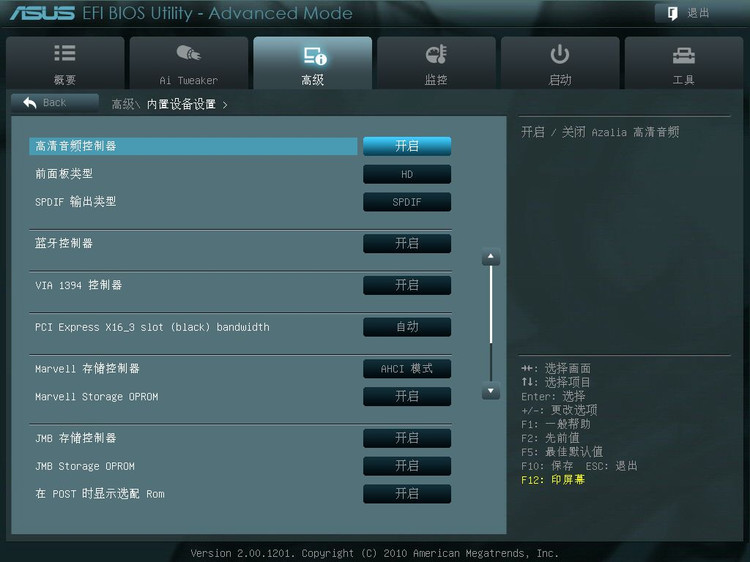

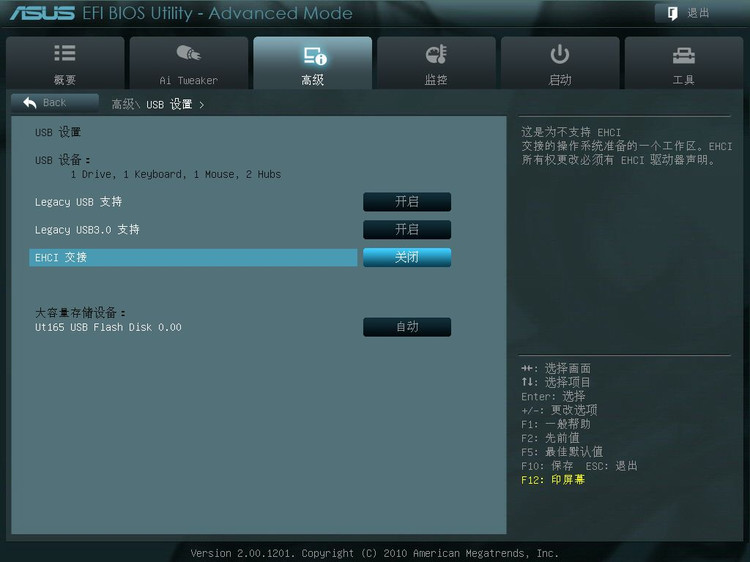

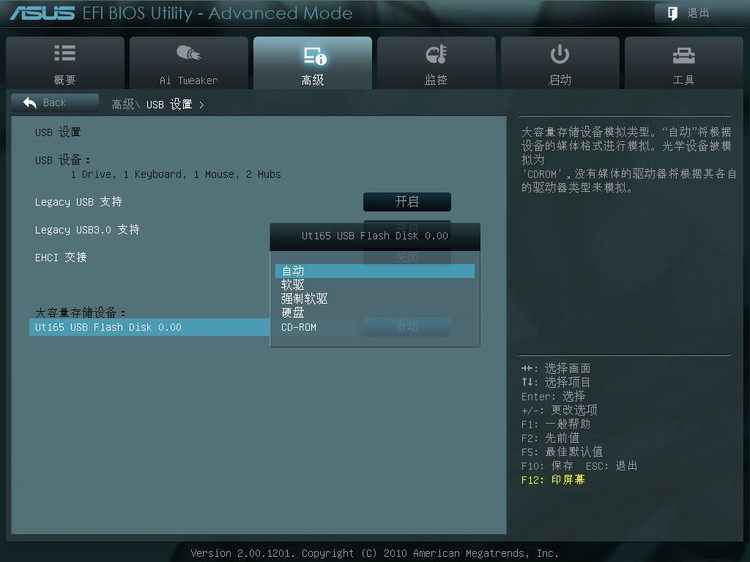

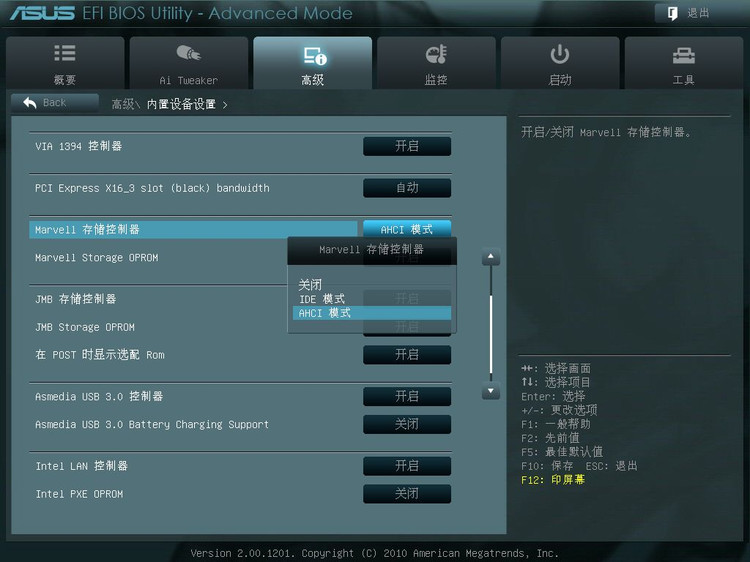

我插有U盘,默认是自动,也可选择为对应的模拟类型。内置设备设置:
华硕主板bios设置图解图33
华硕主板bios设置图解图34
华硕主板bios设置图解图35

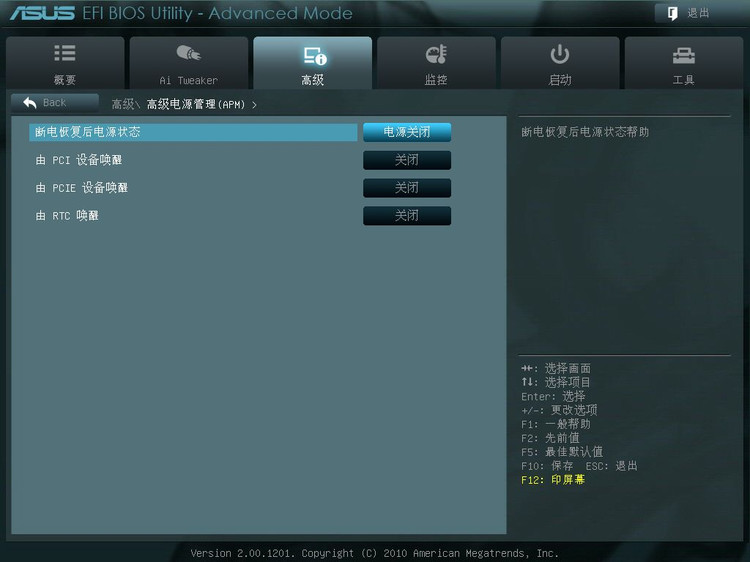

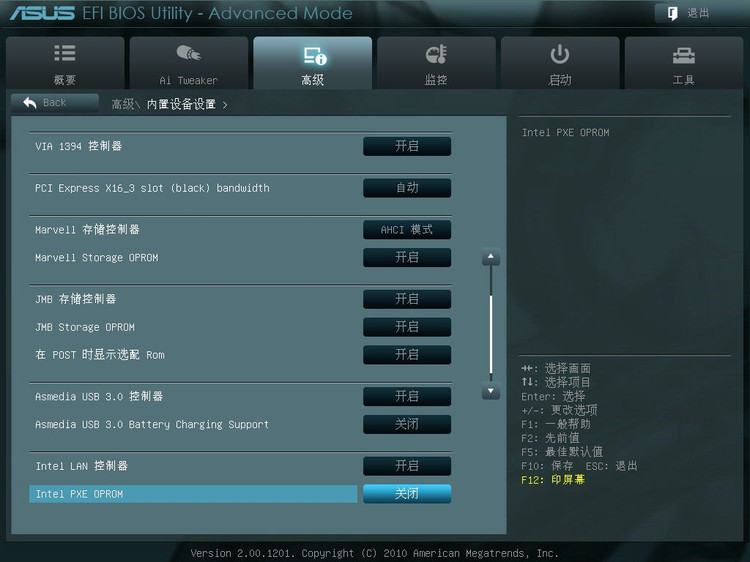

这里调整Marvell控制器带的2个SATA接口的工作模式,高级电源管理:
华硕主板bios设置图解图36

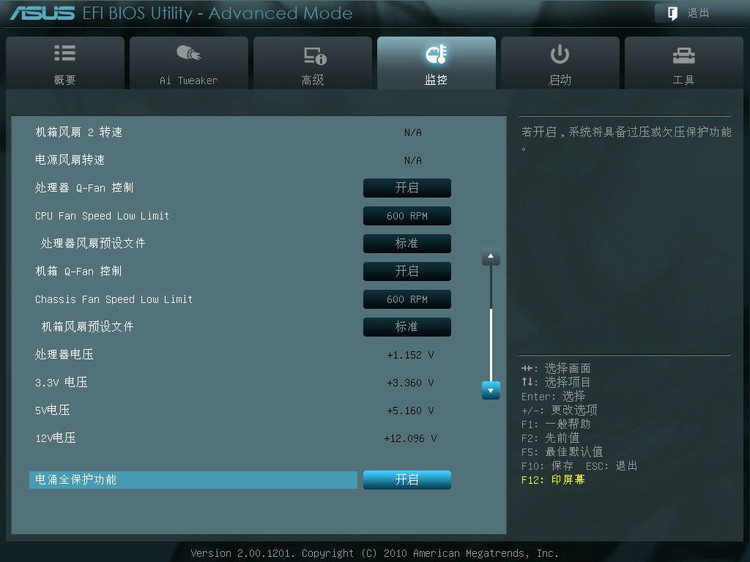

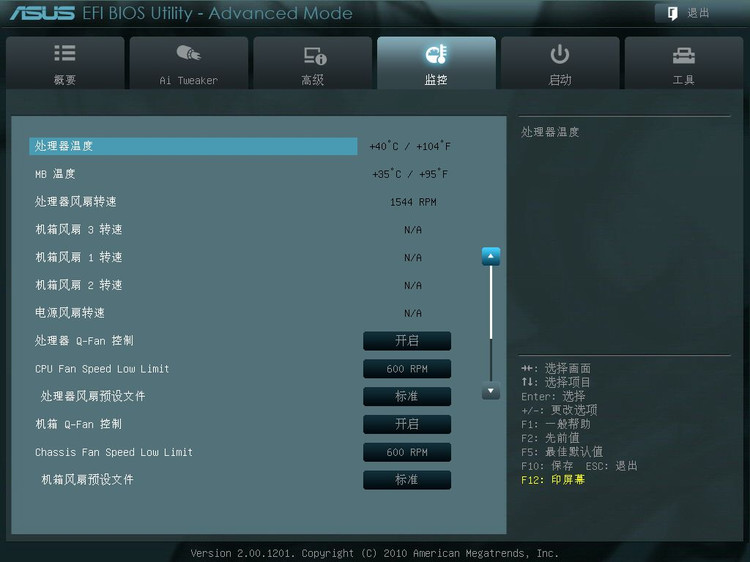

监控选项:
华硕主板bios设置图解图37
华硕主板bios设置图解图38

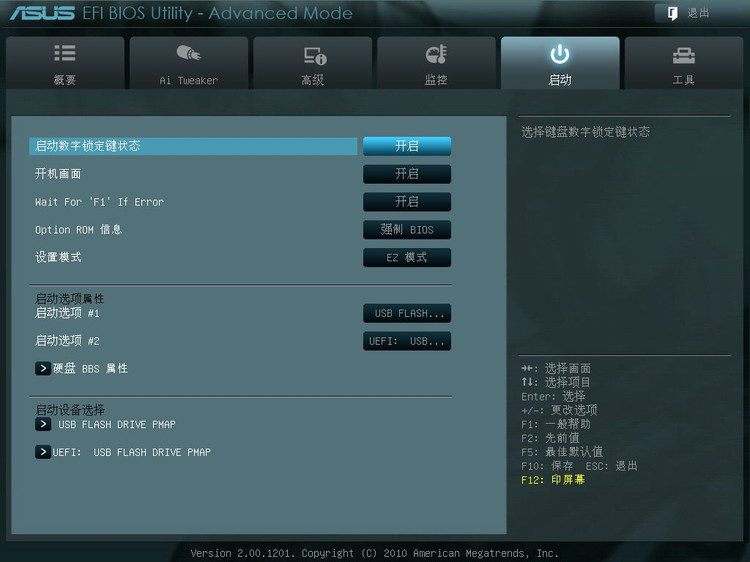

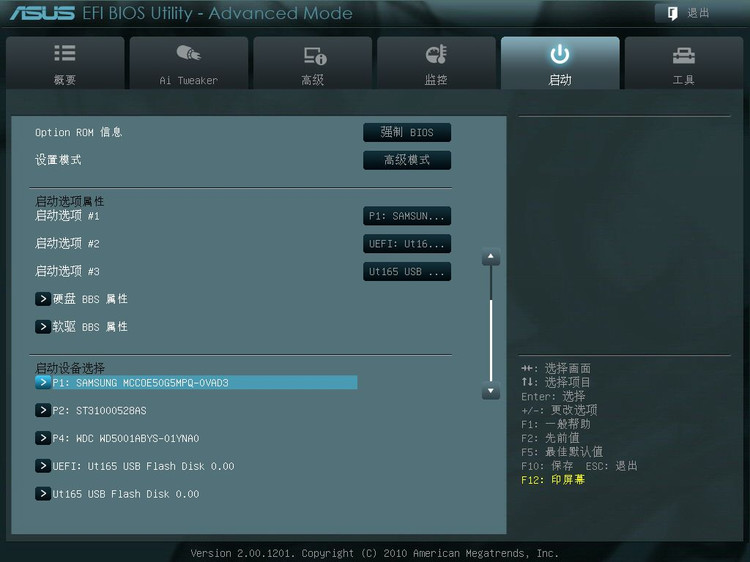

可以查看电压、温度、转速。设置风扇的工作模式。启动选项:
华硕主板bios设置图解图39
华硕主板bios设置图解图40

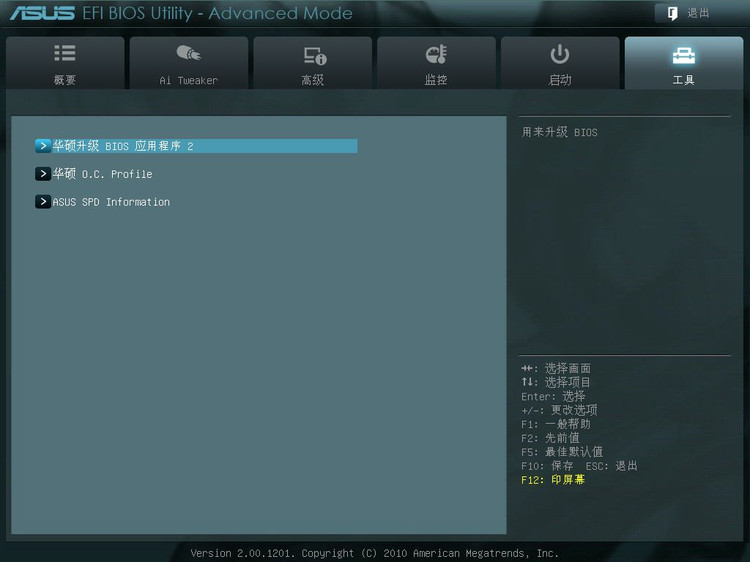

根据实际情况可选择的启动设备也不同。工具选项:
华硕主板bios设置图解图41
华硕的EZ Flash 2 更新BIOS程序:
华硕主板bios设置图解图42

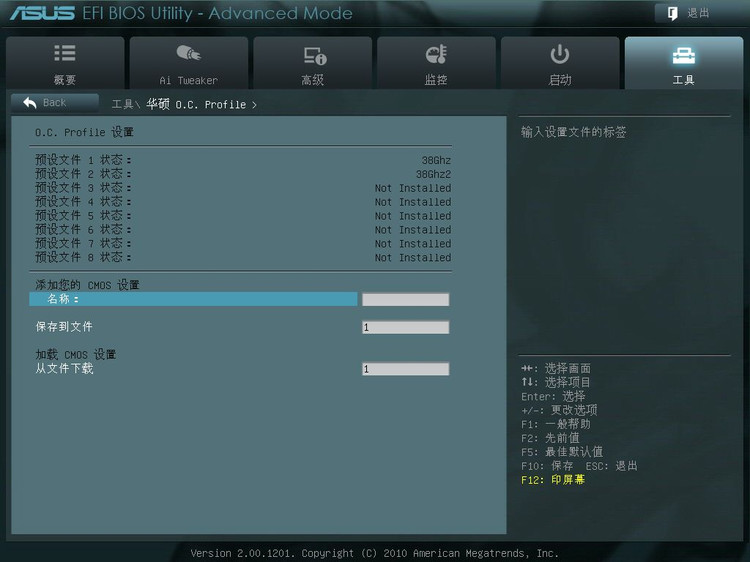

对中文支持不好,文件名要用英文或数字。OC profile选项:
华硕主板bios设置图解图43

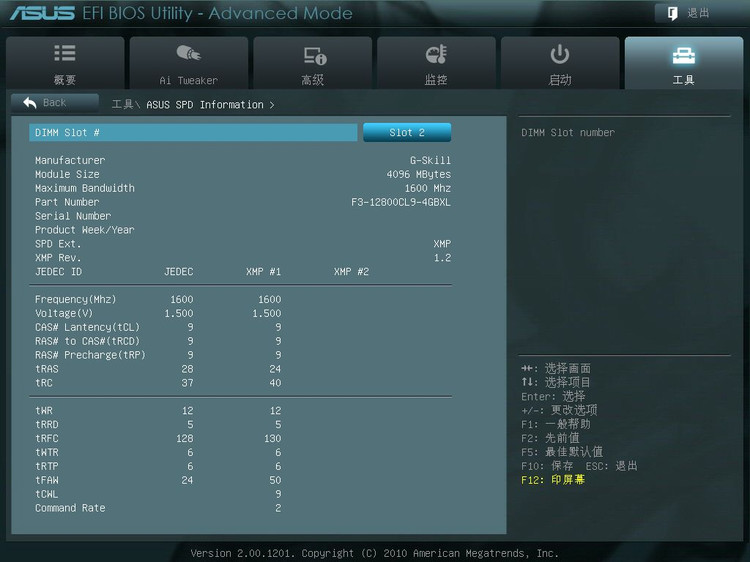

这里可以保存你的BIOS设置,或载入你以前保存的BIOS设置。SPD Information选项:
华硕主板bios设置图解图44

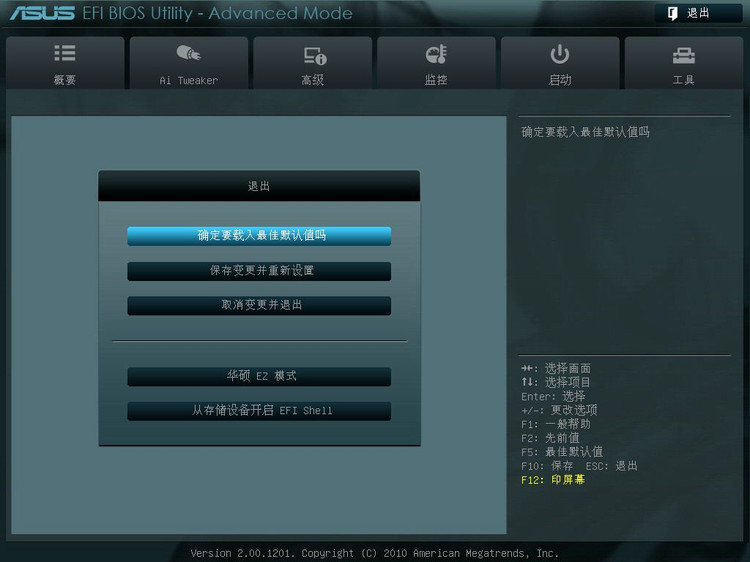

显示内存的SPD内置参数。退出选项:
华硕主板bios设置图解图45
通过这篇华硕主板的bios设置图解我们就可以清楚明白地了解到主板的bios设置的各种功能以及操作,总共有45张图片,是不是非常详细呢?几乎连bios设置里最基础的操作都囊括进去了,没有比这个更加详细的图解了哦,大家有需要的话可以收藏起来备用的。扩展阅读:华硕笔记本bios设置
